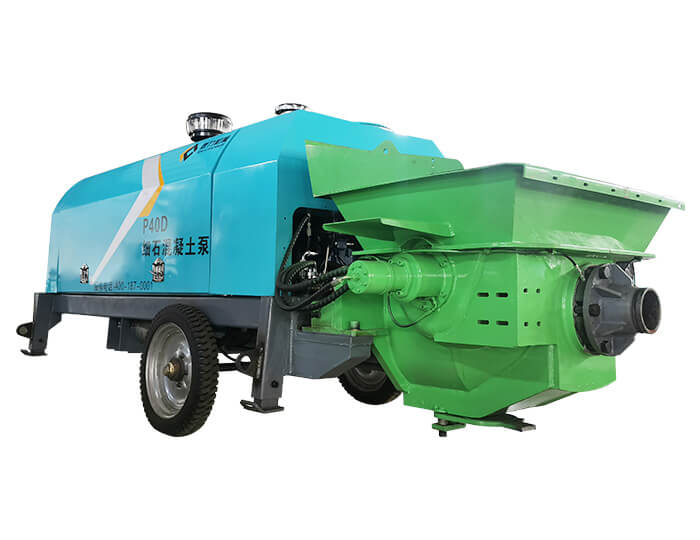

Concrete delivery volume：40m3/h
Concrete outlet pressure：10MPa
Maximum aggregate diameter：10~35mm
Engine power：62KW
It used for plain concrete in various engineering constructions , Fiber concrete transportation; pressure grouting of various foundation piles; widely used in the construction of housing construction, highways, railways, hydropower stations and other projects.
Features
Double-double pump open-loop hydraulic system
Double-double pump open-loop hydraulic system , the main pump and gear pump series, the pump and valve block all use of the famous brands Rexroth, Kawasaki products.
Powered by China’s first brand Deutz Dalian, Weichai cost-effective products.
Integrated lessons well-known enterprises at home and abroad over the design advantages.
Intelligent integrated control circuit used Mitsubishi,Omron,Schneider,Matsushita
Imported five curve speed diesel engine throttle control computor,effetively reducing labor intensity.
dual-circut,big oil,the oil temperature
Mandatory emissions can be controlled large air-cooled radiator,dual-circut,big oil,the oil temperature controlled.
Parameter
| Theoretical Concrete delivery volume | 40m³/h | Theoretical Concrete outlet pressure | 10MPa |
| Theoretical Pumping distance vertical/horizontal | 100/300m | Engine power | 62KW |
| Diameter of discharge port | Φ125mm | Hopper volume | 0.4m³ |
| Maximum aggregate diameter | 10~35mm | Loading height | 1100mm |
| Lubrication system | automatic | Concrete distribution valve | S pipe valve |
| Fuel tank capacity | 180L | Concrete slump | 120～180mm |
| Total Weight | 2350kg | Dimensions | 3750×1550×1700mm |
