Cutting method：Flame cutting,Plasma cutting
Cutting thickness：Flame cutting: 6-200mm,Plasma cutting（unfixed）
Straight line positioning accuracy：±0.2㎜
Automatic height adjustment accuracy：±0.3㎜

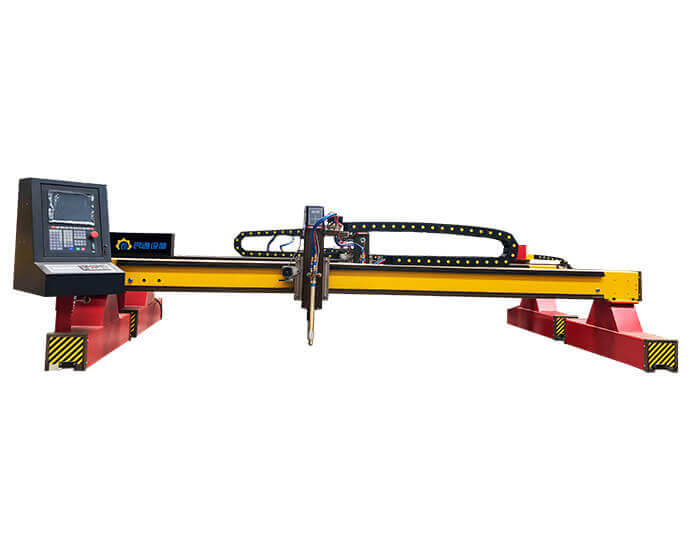

Plasma arc cutting machine is a machine that uses plasma cutting technology to process metal materials.
Features
Bilateral drive ,heavy-duty body design
Bilateral train tracks of 24kg,beam annealing eliminates stress.
It can cut straight lines and circular arc shapes ; Graphic of dynamic and static display，intuitive
CNC plasma/ flame cutting system could be programmed directly on the machine to cut straight lines and circular arc shapes.
Machined Shape
Parameter
Serial number | Item | Reachable indicator. | |
1 | Cutting torch lifting stroke | 1-150mm | |
2 | Cutting thickness | Flame cutting: 6-200〖Punching hole 80〗mm | |
Plasma cutting :depending on the size of plasma power | |||
3 | Rail installation accuracy | 1).Side straightness of main rail 2).Side straightness of secondary rail 3).Parallelism of longitudinal rail surface and horizontal plane | |
4 | Intersection offset | ±0.2mm | A) Positioning accuracy，repeat accuracy：In accordance with JB/T5102-1999 standard B) Dimensional accuracy，cutting surface quality：In accordance with JB/T10045.4-1999 standard |
5 | Straightness | ±0.2mm | |
6 | Roundness | ±0.2mm | |
7 | Diagonal difference | ±0.5mm | |
8 | Straight line repeated positioning accuracy | ±0.2mm | |
9 | Automatic height adjustment accuracy | ±0.3mm | |
10 | Transverse linear positioning accuracy | ±0.2mm | |
11 | Longitudinal linear positioning accuracy | ±0.2mm | |
12 | Running speed | 0-12000mm/min | |
13 | Speed specification error | ≤±5% | |
14 | Cutting speed | Flame 0-800mm/min；Plasma0-6000mm/min | |
15 | Roughness of cutting surface | Flame ≤100um；plasma≤150um Plasma | |
16 | Flatness of cutting surface | ≤2.5/100*T | |
17 | Dimensional accuracy ,straightness accuracy | ≤2mm | |
