Steel bar diameter：10-32mm rebar
bending direction ：Two-way
bending speed：60°/s
Angle accuracy ：±1°
Special equipment for steel bending. It is suitable for various projects, steel bar processing plants and other occasions where steel bars are batch processed.
Features
Two-way simultaneous bending, high work efficiency
Equipped with two independent bending centers ,which can bend various shapes of stirrups simultaneously or independently ,multiple steel bars are formed at one time ,and production efficiency is greatly improved .
Automatically shifting steel bars to ensure continuous production
Equipped with high-strength automatic storage rack ,it can shift steel bars automatically and has strong bearing capacity and low labor cost to achieve continuous production.
Host machine with reasonable structure ,strong bending force ,and precise bending angle
Host machine with reasonable structure and precise bending angle , bending range from 0 to 180°.
High-strength bending platform guide rails with high quality and durable operation
Bending platform is equipped with high-strength moving guide rail ,durable and not easily deformed

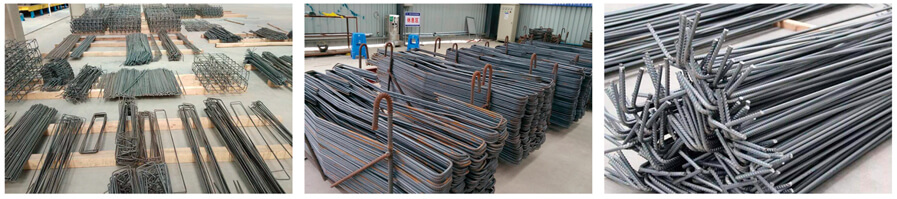

Machined Shape
Parameter
Model | GL-G2L32 | ||||||
Steel bar diameter | φ10mm-φ32mm rebar | Bending direction | Two-way | ||||
Bending length | 300-11700mm | Bending angle | 0-180 ° | ||||
Bending speed | 60/s | Bending space | ≥700mm | ||||
Moving speed | 0.6m/s | Length accuracy | ±1mm | ||||
Angle accuracy | ±1° | Total power | 19kW | ||||
Single bending number | Diameter | φ12 | φ16 | φ18 | φ25 | φ30 | φ32 |
Number | 6 | 5 | 4 | 3 | 2 | 1 | |
