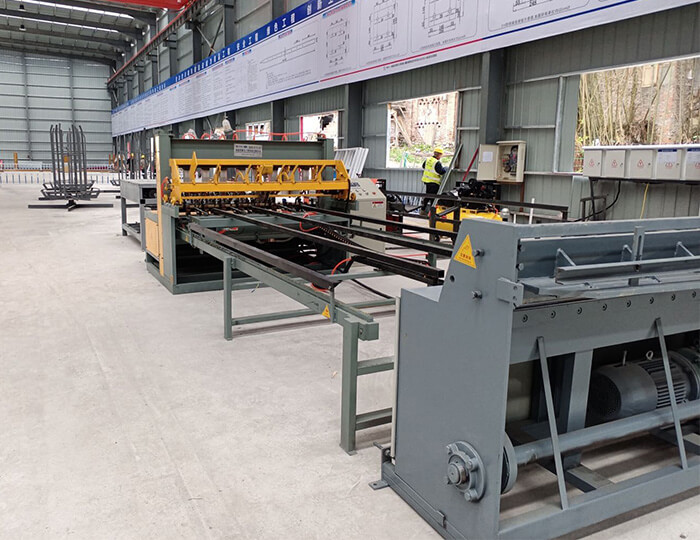

GLSCX-2300 Automatic mesh production line

Welding width：1600mm
Welding length：2500mm
Rebar spacing：&≥100mm
Rebar diameter ：6-8mm

Applied range:

Reinforced mesh welding machine for roads, bridges, water conservancy, railways, mining and other industries

Online inquiry

Send Email

Features

Enlarged and reinforced main body

The main machine frame is welded by thickened steel plate and section steel, which makes the main structure more firm and compact.

Use servo motor to pull the net

Solve the problem of different mesh sizes in the same mesh, stable and fast.

Variety of welding grids

The warp grid can adjust the related parts, and the zonal grid adjustment is controlled by a microcomputer. A variety of different flattening meshes can be set. The grid is uniform and error-free.

Using sub-control welding technology

The welding is firm, stable, fast, not easy to break, wear-resistant, and strong in protection.

Parameter

Model	GLSCX-2300
Welding width (mm)	1600
Welding length (mm)	2500
Rebar spacing (mm)	≥100
Rebar diameter (mm)	6-8mm
Maximum welding capacity	8mm+8mm
Maximum number of welding points	8
Warp feeding method	Coiled steel bar
Weft feeding method	Automatic doffing
way to control	PLC programming
Welding speed (row/min)	25-45 r/min
Upper electrode	φ25mm
Lower electrode	353520mm
Upper electrode connection line (mm²)	200
Lower electrode connection line (mm²)	300
Number of welding machines (sets)	2*120KVA(water-cooled)
Air source pressure (MPa)	0.25-0.6
Air consumption	2.5m³/min
Number of welding cylinders (pcs)	8 double-force cylinders(63X60)
Rated frequency (HZ)	50
Power supply pressure (V)	380V
Cooling water pressure (Mpa)	0.2-0.3
Cooling water consumption	0.4m³/min
