Truck-mounted Robot Shotcrete Machine Series

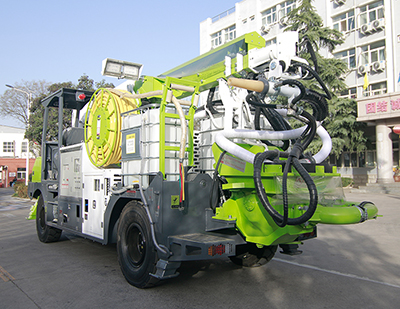

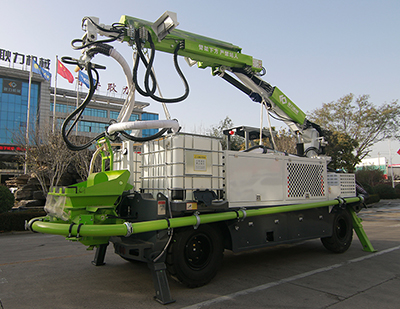

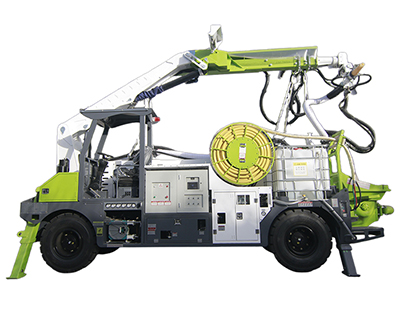

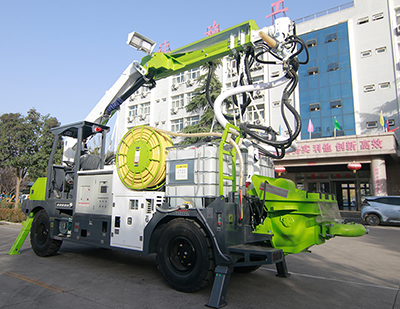

Truck-mounted Robot Shotcrete Machine

Customized remote control is adopted, which is durable, strong anti-interference ability, and 100 meters long-distance wireless remote control.
Accurate control by frequency conversion motor, Real-time monitoring of traffic.
Tensile and wear-resistant cables are standard configurations, which have a strong ability to resist voltage fluctuations and prolong service life.
It adopts large bore and long-stroke pumping system, which has strong suction capacity. In theory, it can pump 35 cubic meters of concrete per hour, while reducing wear and prolonging service life.

READ MORE Get Quotes

Product Parameters

Item	Specification	Unit	Parameter
Machine Data	Size(L×W×H)	mm	7770×2645×3230
Machine Data	Weight	kg	15500
Pumping System	Shotcrete Capacity	m³/h	35
	Oil Cylinder Bore	mm	Φ100
	Piston Cylinder Bore	mm	Φ180
	Piston Cylinder Stroke	mm	1000
	Conveying Pipe Diameter	mm	Φ125～Φ90
	Max. Aggregate Size	mm	Φ15
	Concrete Outlet Pressure	bar	83
	Hopper Volume	m³	0.3
Traveling System	Traveling Method	/	Wheel
	Driving Axle	/	Wet Brake Axle
	Steering	/	Four Wheel Drive
	Min. Turning Radius	m	10
	Engine Power	kw	97
	Wheelbase	mm	3940×1876
	Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ	km/h	5/10/17.5/20
	Max. Climbing		36%（20°）
	Min. Ground Clearance	mm	300
	Braking Distance	m	5(20km/h)
Boom	Max. Spraying Height	m	Depth7.4～High15.8
	Max. Spraying Width	m	±13.5
	Swing Angle of Boom	（°）	270
	Rotary Angle around nozzle	（°）	±180
	Left-right turn angle of nozzle	（°）	±120
	Swing Angle of Nozzle	（°）	8（continuous）
	Swing Angle of Nozzle	（°）	8（continuous）
	Min. Tunnel Size	m	4
Dosing System	Doding Pump	/	YD25R
	Driving Method	/	Frequency Motor Drive
	Dosing Flow	L/h	1000
	Max. outlet pressure	bar	12
	Accelerator Tank	L	1000
Electric System	Cable Specification	/	3×35²
Electric System	Cable Length	m	80
Hydraulic System	Motor Power	kw	55
	Oil Tank Volume	L	370
	Hydraulic oil pollution degree	/	NAS1638-9
	Oil Pump Flow	ml/r	145
Washing System	Water Pump Model	/	3WZ-1814HM
	Water Tank Volume	L	500
	Drive Method	/	Hydraulic

GHP3515F

Engineering Truck-mounted Robot Shotcrete Machine

After tens of thousands of fatigue strength tests, the service life is longer, the performance is more stable, more reliable, the operation range is wide，the hydraulic control is adopted, the operation is sensitive, and the maintenance is more convenient.
The whole vehicle is equipped with a high-power air compressor, which solves the disadvantages of limited equipment conditions in the past, and makes it easy to use the equipment in high-altitude areas and areas with poor equipment on the working site..

READ MORE Get Quotes

Product Parameters

Item	Specification	Unit	Parameter
Machine Data	Size(L×W×H)	mm	7910×2645×3270
Machine Data	Weight	kg	17000
Pumping System	Shotcrete Capacity	m³/h	35
	Oil Cylinder Bore	mm	Φ100
	Piston Cylinder Bore	mm	Φ180
	Piston Cylinder Stroke	mm	1000
	Conveying Pipe Diameter	mm	Φ125～Φ90
	Max. Aggregate Size	mm	Φ15
	Concrete Outlet Pressure	bar	83
	Hopper Volume	m³	0.3
Traveling System	Traveling Method	/	Wheel
	Driving Axle	/	Front wheel steering
	Steering	/	Four Wheel Drive
	Min. Turning Radius	m	11.4
	Engine Power	kw	97
	Wheelbase	mm	4400×1887
	Walking SpeedⅠ/Ⅱ/Ⅲ/Ⅳ	km/h	5/10/17.5/20
	Max. Climbing		36%（20°）
	Min. Ground Clearance	mm	300
	Braking Distance	m	5(20km/h)
Boom	Max. Spraying Height	m	Depth7.4～High15.8
	Max. Spraying Width	m	±13.5
	Swing Angle of Boom	（°）	270
	Rotary Angle around nozzle	（°）	±180
	Left-right turn angle of nozzle	（°）	±120
	Swing Angle of Nozzle	（°）	8（continuous）
	Swing Angle of Nozzle	（°）	8（continuous）
	Min. Tunnel Size	m	4
Dosing System	Doding Pump	/	YD25R
	Driving Method	/	Frequency Motor Drive
	Dosing Flow	L/h	1000
	Max. outlet pressure	bar	12
	Accelerator Tank	L	1500
Electric System	Cable Specification	/	3×95²
Electric System	Cable Length	m	80
Hydraulic System	Motor Power	kw	55
	Oil Tank Volume	L	390
	Hydraulic oil pollution degree	/	NAS1638-9
	Oil Pump Flow	ml/r	145
Washing System	Water Pump Model	/	3WZ-1814HM
	Water Tank Volume	L	200
	Drive Method	/	Hydraulic
Compressor	Compressor motor power	Kw	90
	Air Flow	m³/h	15.1
	Air pressure	bar	0.7

UPS-20JT

Truck-mounted Robot Shotcrete Machine

Large bore & long stroke concrete cylinder; Strong suction ability, maximum pumping flow reaches up to 20m³/h
Large conveying pipe, reduce the wear of concrete on the pipeline; Prolong the service life, and with strong anti-blocking ability.
Reinforced wet brake drive axle, Four-wheel drive, Articulated steering, Strong rod adaptability.
Signal pulse feedback, originally imported, proportional flow valve to accurately control the flow in real time.

READ MORE Get Quotes

Product Parameters

Item	Basic Performance	Data
Machine data	Dimension	700021402450mm
Machine data	Total weight	11000kg
Pumping system	Theoretical spraying displacement	20m³/h
	Concrete cylinder bore	Φ140mm
	Concrete cylinder stroke	1000mm
	Conveying pipe	Φ125-Φ80mm
	Maximum aggregate size	15mm
	Hopper volume	0.3m³
	Outlet pressure of concrete	60bar
	Water-cement ratio	0.45~0.6
	Filling height	1350mm
Chassis	Traveling way	Wheel type
	Driving axle	Hydraulic wet brake axle
	Driving/Steering	Four-wheel driving/Articulated steering
	Articulated angle	±47.5°
	Min.turning radius	Inner 3215mm/ Outer 5845mm
	Engine power	81kw/2200RPM
	Wheelbase×Wheel tread	3920mm×1540mm
	Max.traveling speed	18km
	Max.climbing degree	16°
	Min.ground clearance	280mm
	Braking distance	≤3.5m
Robot arm	Max.spraying height-vertical	8.8m
	Max.spraying distance-horizontal	7.4m
	Max.spraying width	14.8m
	Swing angle of arm	270°
	Rotation angle-nozzle	±180°
	Left-right rotation angle-nozzle	±120°
	Nutation angle	8°（continuous）
	Pitching angle	-30°/+60°
Additive pump	Pump model	JXHIN-20
	Pump type	Peristaltic pump
	Driving way	Hydraulic
	Flow rate	0～400L/h
	Max.outlet pressure	12bar
Hydraulic system	Main motor power	37kw
	Rated speed	1475r/min
	Rated voltage	380V/optional
	Oil tank volume	270L
	Degree of hydraulic oil pollution	NAS1638-9
	Oil pump displacement	95/33/23/23
Air compressor	Motor power	45kw
	Air volume	9.2m³/min
	Air pressure	6bar

GHP2516C-II

With innovative technology, excellent structure and strong mobility to consider multiple facets.
Accelerator matches system automatically, resilient ratio≤15%.
Link design to protect the tube, lighter weight and larger bending radius.
Designed with external concrete delivery pipe for easier cleaning and examine.
Imported ultra-long wireless remote control from Italy.

READ MORE Get Quotes

Product Parameters

Machine data	Dimension	L9220 W2500 H3450mm
Machine data	Total weight	15200kg
Pumping system	Theoretical spraying displacement	25m³/h
	Cylinder bore	Φ160mm
	Pumping stroke	1000mm
	Delivery pipe diameter	Φ125-φ90mm
	Maximum aggregate diameter	Φ16
	Hopper volume	0.3m³
	Outlet pressure of concrete	75bar
	Water-cement ratio	0.45~0.6
Chassis system	Chassis model	Foton
	Engine power	170hp
	Gear box	Fast
	Wheelbase	4800mm
	Maximum traveling speed	90km/h
	Maximum climbing degree	30%
	Minimum ground clearance	255mm
	Barking distance	12.5m（50km/h）
Mechanical arm	Maximum spraying height	Depth 7.3m~Height 16.4m
	Maximum spraying width	±13.5m
	Swing angle of arm	270°
	Rotation angle around the nozzle	±180°
	Left-right rotation angle of nozzle	±120°
	Swing angle of nozzle	8°
Accelerator system	Accelerator pump model	SN-12
	Driving way	Hydraulic
	Accelerator displacement	0~1000L
	Maximum outlet pressure	20bar
	Accelerator volume	1000L
Hydraulic system	Main motor power	55KW
	Fuel tank capacity	350L
	Accuracy grade of hydraulic oil	NAS1638-9
	Main pump displacement	145ml/r
Washing system	Pump model	3WZ-1814HM
	Water tank volume	350L
	Driving way	Hydraulic drive
